Industrial and Agriculture Hoses

TubiTECH black

A hose made of a special composition material, being braced with a high-strength PES fibre.

Its appearance and elasticity is similar to rubber.

Application: Compressed air, water. The inner layer can be of a transparent type, of a special composition material.

Application: Food industry purposes.

Inner diameter: 4-50 mm
Work.pressure: max.20 Bar

TubiTECH crystal

A hose made of PVC, braced with a high-strength PES fibre.

Application: Compressed air, water.

Inner diameter: 4-50 mm
Colour: transparent
Work.pressure: max.20 Bar

TubiTECH MB 11

A hose made of PVC, braced with a high-strength PES fibre.

Application: Compressed air, water.

Inner diameter: 12,5-32 mm
Colour: green, transparent
Work.pressure: max.20 Bar

TubiTECH-cooling blue/red

Blue and red transparent PVC hose of two layers, reinforced with high-strength PES fibre. The colour finish draws a clear distinction between the inlet and the outlet of cooling water. The working temperature ranges from -5 to +60°C or briefly up to +90°C.

Application: Injection moulds cooled by water.

Inner diameter: 6x12, 9x15, 13x19 mm
Colour: red, blue
Work.pressure: max.15 Bar

TubiPRESS 40

A blue non-transparent PVC hose of two or three layers, braced with high-strength PES fibre.

Application: Sprayers for pesticide and insecticide, compressed air, water.

Inner diameter: 12-31 mm
Work.pressure: 40 Bar

TubiPRESS 80

A red non-transparent PVC hose of three layers, braced with high-strength PES fibre.

Application: Sprayers for pesticide and insecticide, compressed air, water.

Inner diameter: 10, 16, 19 mm
Work.pressure: 80 Bar

TubiPRESS beige 20 OR

Beige PVC hose of two layers, reinforced with high-strength PES fibre.

Application: For technical purposes as the conveyance of water, compressed air with admixture of oil, aqueous solutions, pesticides and insecticides in agriculture.

The diameters supplied: 8x13, 10x15, 13x19, 16x23, 19x26, 25x34 mm
Work.pressure: 20 Bar

TubiPRESS ECO 20

Blue PVC hose of two layers, reinforced with high-strength PES fibre.

Application: For technical purposes as the conveyance of water, compressed air, aqueous solutions, pesticides and insecticides in agriculture.

The diameters supplied: 8x13, 10x15.5, 13x19 mm
Work.pressure: 20 Bar

TubiAIR superelastic

A grey non-transparent PVC hose, braced with high-strength PES fibre. Resistant to oils. Very flexible.

Application: Distribution systems of compressed air and water.

Inner diameter: 6, 9, 13 mm
Work.pressure: max.20 Bar

TubiAIR blue

A blue non-transparent PVC hose, braced with high-strength PES fibre.

Application: Distribution systems of compressed air and water.

Inner diameter: 6, 9, 13 mm
Work.pressure: max.20 Bar

TubiAIR transparent

A blue transparent PVC hose, braced with high-strength PES fibre.

Application: Distribution systems of compressed air and water.

Inner diameter: 6, 9, 13 mm
Work.pressure: max.20 Bar

TubiAIR PU

Blue, non-transparent PU/PVC hose with two layers, reinforced with a high-strength PES fibre.
Owing to the use of PU/PVC special-composition material the hose is very elastic, flexible, and partially resistant to abrasion.
The working temperature ranges from -10 to +60°C.

Application: Compressed air distribution systems and the connection of pneumatic manual tools.

The diameters supplied: 6x10, 8x12, 10x14.5, 13x19 mm
Colour: blue non-transparent
Work.pressure: max.20 Bar

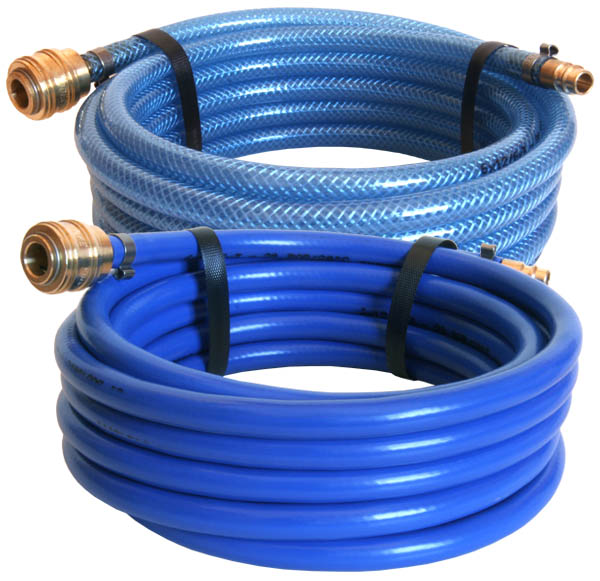

TubiAIR Assembled

The hose is available in 5m, 10m, and 15m packages, fitted with a brass quick-coupler and insertion of LÜDECKE.

Application: Compressed air distribution systems and the connection of pneumatic manual tools.

Inner diameter: 6, 9, 13 mm
Colour: blue, blue-transparent
Work.pressure: max.20 Bar

Tubi BT-Crystal B (gasoline resistant)

A transparent single-layer PVC hose made of a special composition material.

Application: Pressure-free conveyance of gasoline.

Inner diameter: 2-16 mm

Tubi BT-Crystal

A clear transparent single-layer PVC hose.

Application: Pressure-free conveyance of water and air.

Inner diameter: 1-33 mm
Work.pressure: max.2 Bar

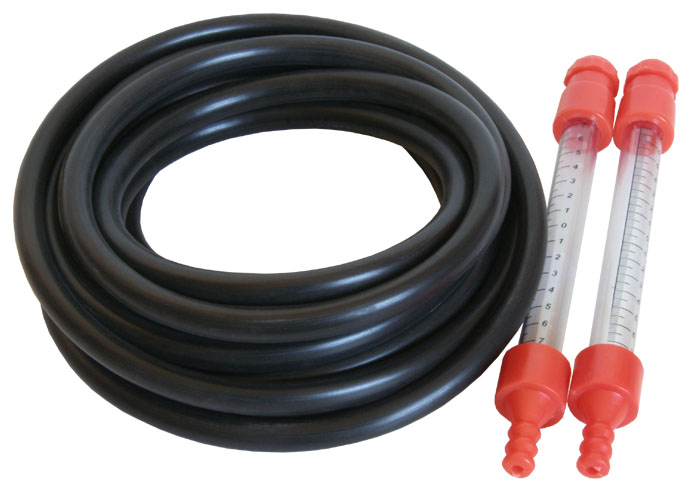

Improvised Level

A black single-layer PVC hose, very soft and flexible.
Delivered either individually or in a set complete with two plastic bowls.

Diameter: 10x14 mm
Lengths: standard 10m, 15m
